This series of products have high reliability, strong anti-interference ability, power saving and durable meter reading system. The meter reading system is a new type of remote centralized reading, charging, monitoring and management system designed for the water supply department. It has three floors of sub-meters, collectors (concentrators) and management centers.

Multi-flow rotor type: adopts domestic mainstream metering structure.

Liquid-sealed movement: high sensitivity; special liquid encapsulation of the character wheel window can keep the reading permanently clear.

Dry core: central magnetic transmission, anti-magnetic interference, good stability, strong anti-freezing ability, and permanent clear reading.

Bus communication mode: RS-485 or M-BUS.

No need for power supply for daily work, only bus power supply when reading meter. Waterproof, moisture-proof and light interference proof.

Waterproof, moisture-proof and light interference proof.

Material optional: ductile iron, engineering plastics, copper, stainless steel.

Optional sampling method: photoelectric, pulse..

Environmental rating: Class B electromagnetic environment: E1

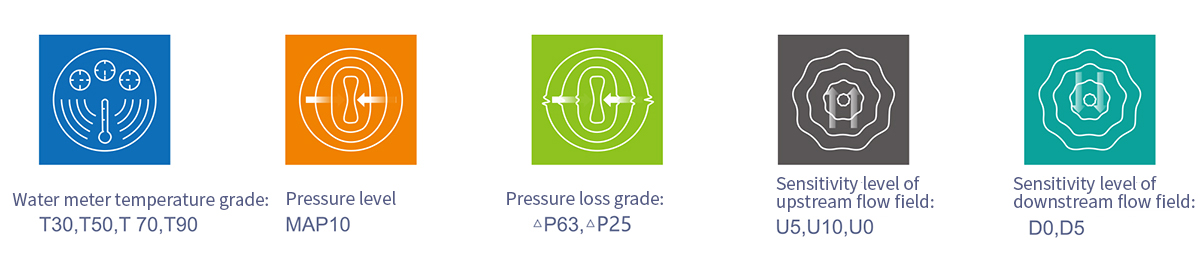

Temperature class: T30, T90

Accuracy Class: Class 2

Maximum permissible error: low zone (Q1≤Q

When the water temperature is ≤30C, the maximum permissible error in the high zone (Q2≤Q≤Q4) is ±2%; when the water temperature is> 30C, the high zone (Q2≤Q≤Q4) The maximum permissible error is ±3%
